Heavy-Duty Radius Arms and Pro-Ride Coil Springs
The BDS kit includes front-specific Pro-Ride dual-rate coil springs tuned exclusively for diesel trucks. Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance. These arms are built to handle extreme conditions and provide a solid foundation for improved suspension geometry.
Complete Front Suspension System
- Pro-Ride dual-rate coil springs designed for diesel trucks
- Forged drop pitman arm to correct steering angle
- Track bar relocation bracket for proper axle alignment
- Sway bar relocation brackets for proper articulation
- Brake line relocation brackets to maintain brake performance
- Precision-tuned NX2 Nitro or optional FOX 2.0 Performance shocks
Rear Lift Components Built to Last
In the rear, the system uses high-strength fabricated steel lift blocks paired with extended U-bolts, brake line brackets, and matched rear shocks. The result is a level, commanding stance from front to rear.
Premium Shock Options
NX2 Nitro Series Shocks
Standard vehicle-specific nitrogen-charged shocks that balance performance and comfort across all terrains.
FOX 2.0 Performance Series Shocks
Upgrade to race-proven FOX 2.0 IFP shocks for ultimate control, heat dissipation, and long-term durability on and off-road.
Performance Comparison: Key Points
| Feature | NX2 Nitro | FOX 2.0 |
|---|---|---|
| Ride Quality | Balanced and smooth | Race-level damping |
| Terrain Capability | All-purpose | High-impact off-road |
| Heat Dissipation | Standard | Advanced aluminum body |
Technical Specifications
| Specification | Details |
|---|---|
| Front Lift Height | 5 inches |
| Rear Lift Height | 3 inches |
| Front Lift Method | Coil Spring |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Part Number | 2203FS / 2203H |
Fitment Guide
| Years | Make | Model | Drive | Engine |
|---|---|---|---|---|
| 2023-2024 | Ford | F-250 Super Duty | 4WD | Diesel |
| 2023-2024 | Ford | F-350 Super Duty | 4WD | Diesel |
Important Notes
- Not compatible with radius arm-mounted ride height sensors
- Factory pitman arm nut should be replaced after each removal
- Carrier Bearing Drop Kit may be required for 2-piece driveshafts (BDS123402)
- Final lift height on Tremor models may differ due to factory rake
- Stock wheels with larger tires may interfere with brake lines or sway bar
- Use torque wrench capable of 406 ft-lbs during install
- Trucks without top-mounted overload springs require (4) UBT4028
- PROP 65 WARNING – www.p65warnings.ca.gov
Where Strength Meets Performance

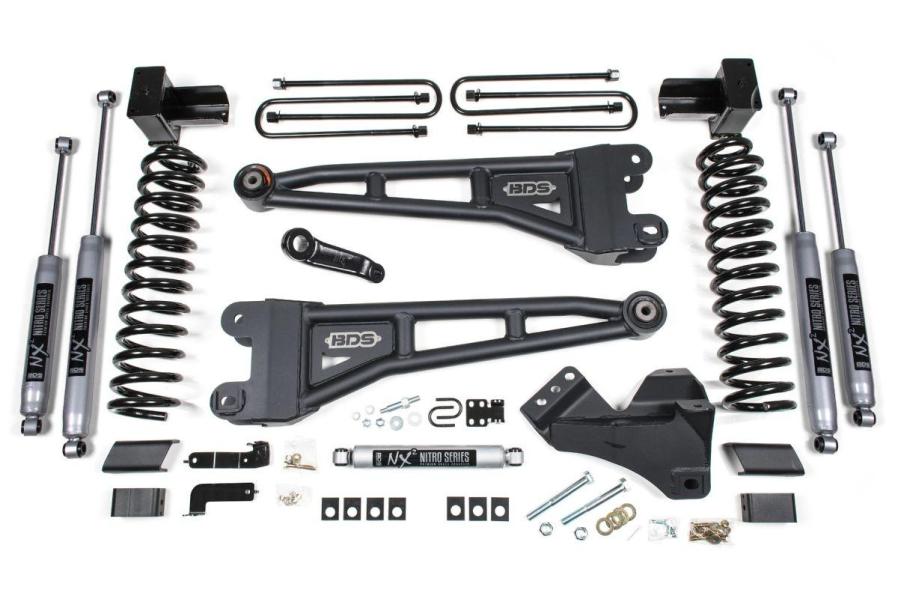

This 5-inch Radius Arm Lift Kit by BDS Suspension transforms your Super Duty into a rugged performer capable of handling anything the trail throws its way—without compromising comfort or control on the pavement. Built for power. Engineered for durability.
